Forced convection and ventilation method.
Capacity: 3.6 cu. ft. or 91 liters.
Maximum Temperature: 360°C.
Electrical Requirements: 220VAC / 15.5A / 50-60Hz.
NEW product distributed by LabCommerce.

  >> View More Photos
Home > Manufacturers > Yamato Ovens, Incubators, Chambers

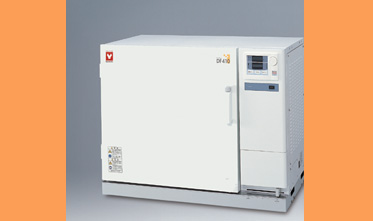

Yamato DH-411 (DH411) and DH-410C (DH410C) Forced Convection Oven, Max 360°C, 91L or 3.2 cu.ft., 220VAC, NEW

The Yamato safety forced convection and ventilation oven, model DH-411 (DH411, DH-410C, DH410C), operates at a temperature range of room temperature +10°C to 360°C. Its capacity is 3.2 cu.ft. or 91 liters.

Please see the Technical Specifications below for more information.Note: C stands for CE Mark.




Item Code: YAM-1855
Model: DH-411 (DH411), DH-410C (DH410C, CE Mark)
Manufacturer: Yamato
Availability: On Request
Selling Price: $4980.00


Method:Forced convection and ventilation.
Electrical Requirements:220VAC, single phase, 15.5A, 50/60Hz.
Internal Capacity:3.2 cu. ft. (91 liters).
Operating Temperature Range:Room temperature +10°C to 360°C.
Temperature Distribution Accuracy:±2.5°C at 360°C.
Temperature Control:PID control with a microcomputer.
Temperature Sensor:K-thermocouple (double sensor).
Heat Insulator:Ceramic fiber.
Heater Material:Stainless steel pipe heater with a fan.
Heater:2700W.
Door:Safety door to relieve an explosion pressure.
Fan:Axial fan (condenser motor 20W).
Operation and Control:Fixed operation, auto-start/stop, program operation.
Other Functions:Current time display, calibration offset function.
Timer:Accumulated timer function (up to 49,999 hours).
Internal Dimensions:17.7W x 17.7D x 17.7H inches.
External Dimensions:41.3W x 24.4D x 48.8H inches.
Warranty:One year from date of shipment.
Shipping Weight:Approximately 399 lbs. (680.1 lbs. domestic dim weight with 48L x 48W x 49H-inch pallet). Please contact us for more information on shipping methods and rates. We will also need to know if your company needs a liftgate at delivery.Shipping Terms: FOB, Santa Clara, CA, via best way (truck delivery); shipped on a pallet. The shipping cost, including insurance, packaging, pallet, liftgate at pickup, transit and dropoff (if required) will be added to the selling price. Shipping to the US only. Sales tax applies to California sales.
Accessories (Catalog No. 211063, Shelf & Brackets):List Price: $120.00 per set, Selling Price: $114.00/set


  Call us today for details.
