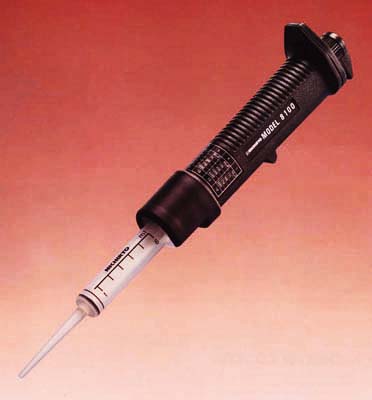

Model 8100



Variable Volume Repetitive Syringe Dispenser

35 volumes, from 1.0 uL to 5 ML, are selectable by selecting dial switch and appropriate syringe. 20% more number of dispensing over conventional repetitive syringe dispensers. The syringes are autoclavable for reuse (except 3ML and 60ML syringes). Light weight, slender body and ergonomically designed finger rest reduces operator's fatigue in repetitive and prolong use. Aspiration and dispense are performed using single hand.



Accuracy & Precision
Cat. No. Volume Range Accuracy Precision
SG-V2 1 - 5uL +/-2.5% 4.0-2.5%
SG-S 10-50uL +/-1.5% 1.5-1.0%
SG-M 25-125uL +/-1.2% 1.0-0.8%
SG-N3 50-250uL +/-1.0% 0.9-0.6%
SG-L 100-500uL +/-0.8% 0.8-0.4%
SG-Y 0.25-1.25ML +/-0.6% 0.6-0.3%
SG-Z 1-5ML +/-1.0% 1.0-0.5%
  • SG-S and SG-M data was taken with Nichiryo tip on the nozzle and at the water temperature of 20 deg. C.

Dispensing Volumes



Size of Syringe

 0.06ML
(SG-V2)		 0.6ML
(SG-S)		 1.5ML
(SG-M)		 3.0ML
(SG-N3)		 6.0ML
(SG-L)		 15ML
(SG-Y)		 60ML
(SG-Z)		 Max No of Dispense
Volume
Select
Dial		 1 1uL 10uL 25uL 50uL 100uL 250uL 1ML 58
2 2uL 20uL 50uL 100uL 200uL 500uL 2ML 28
3 3uL 30uL 75uL 150uL 300uL 750uL 3ML 18
4 4uL 40uL 100uL 200uL 400uL 1ML 4ML 13
5 5uL 50uL 125uL 250uL 500uL 1.25ML 5ML 10



Ordering Information

Cat. No.

Description

Package
8100 Main Unit of Syringe Dispenser with one each SG-S, SG-M and SG-L Each

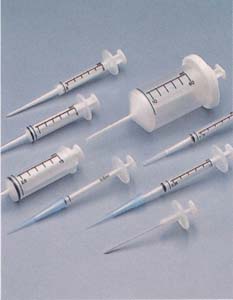

SG-V2 0.06ML Syringe without tip 100 / Box
SG-S 0.6ML Syringes 100 / Box
SG-M 1.5ML Syringes 100 / Box
SG-MP 1.5ML Syringes 100 / Box
SG-N3 3.0ML Syringes 100 / Box
SG-L 6.0ML Syringes 100 / Box
SG-Y 15ML Syringes 50 / Box
SG-Z 60ML Syringes with an Adapter 50 / Box
8100S Stand to hold two Model 8100 Each

Standard items come with the product:

To order these products, please call LabCommerce at (408) 265-6482 or email us at info@labcommerce.com.
